Lower Kelly Valves*



Packard International Products

Product Line Acquired from OMSCO

Precision Machining Capabilities



Phone:   281-399-8771
Fax:   281-399-8773
sales@packardint.com



When ordering this product please specify BOTH of the following:

(1) the size

(2) the working pressure

Please specify serial number when ordering repair parts.

See chart below for complete information.

* Packard International is now the sole manufacturer of this product design acquired from OMSCO.

Valve Overview

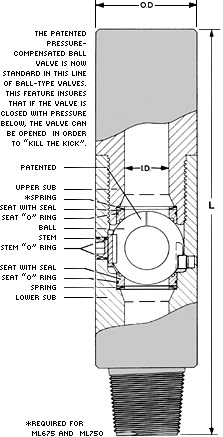

The lower kelly valve body is manufactured from 4145H modified fully heat treated alloy steel. This valve is a two piece design and is a positive opening, ball type valve. When installing the valve in the drill string, the same amount of torque should be applied in the make up of the valve as is used in making up tool joints.

By closing this valve before breaking a joint, you will save mud and keep the drilling floor cleaner and free of excess mud. The heavy duty body design enables the contractor to use this valve above and/or below the kelly.

The lower kelly valve comes complete with a hex-type operating wrench and pressed steel thread protectors.

Features and Benefits
  • Self-lubricating, ball-type valve

  • Stainless steel ball and non-corrosive seat are standard

  • Two piece design with fewer replacement parts for easy, economical repair
Maintenance

These lower kelly valves are designed for even the harshest drilling conditions; however, it is suggested that parts most subject to wear and tear be replaced regularly.

For complete maintenance instructions and valve specifications, please phone 281-399-8771, e-mail support@packardint.com, or click the link below to download a PDF.

Download a PDF of complete Maintenance Instructions


Lower Kelly Valve Specifications
Complete Valve LK525000 LK600000 LK637000 LK650000 ML675000 ML750000
Size & Working Pressure 5-1/4" - 10,000 psi WP 6" - 15,000 psi WP 6-3/8" - 10,000 psi WP 6-1/2" - 15,000 psi WP 6-3/4" - 10,000 psi WP 7-1/2" - 15,000 psi WP
Approx. Weight (lb) 136 196 180 195 220 310
OD (in.) 5-1/4 6 6-3/8 6-1/2 6-3/4 7-1/2
ID (in.) 2 2 2-3/4 2-9/16 3 3
Length (in.) 30 30 32 32 32 36
Wrench-Hex 1 Part No. LK841001 1 Part No. LK841001 1 Part No. LK841001 1 Part No. LK841001 1 Part No. LK841001 1 Part No. LK841001
Upper Sub 1 Part No. LK812001 1 Part No. LK822001 1 Part No. LK832001 1 Part No. LK832H01 1 Part No. LK842001 1 Part No. LK862001
Spring 1 Part No. LK813000 1 Part No. LK813000 1 Part No. LK833000 1 Part No. LK833000 2 Part No. LK843000 2 Part No. LK843000
Seat with Seal 2 Part No. LK814000 2 Part No. LK814000 2 Part No. LK834000 2 Part No. LK834H00 2 Part No. LK844000 2 Part No. LK844000
Teflon “O” Ring 2 Part No. LK521000 2 Part No. LK521000 2 Part No. LK621000 2 Part No. LK621000 2 Part No. LK821000 2 Part No. LK821000
Seat “O” Ring 2 Part No. LK815000 2 Part No. LK815000 2 Part No. LK835000 2 Part No. LK835000 2 Part No. LK845000 2 Part No. LK845000
Ball 1 Part No. LK816000 1 Part No. LK816000 1 Part No. LK836000 1 Part No. LK836000 1 Part No. LK846000 1 Part No. LK846000
Stem 1 Part No. LK81700P 1 Part No. LK83700P 1 Part No. LK83700P 1 Part No. LK83700P 1 Part No. ML84700P 1 Part No. ML86700P
Stem “O” Ring Set 1 Part No. LK818000 1 Part No. LK818000 1 Part No. LK818000 1 Part No. LK818000 1 Part No. LK818000 1 Part No. LK818000
Complete Valve Kit 1 Part No. LK830000 1 Part No. LK830H00 1 Part No. LK890000 1 Part No. LK890H00 1 Part No. ML850000 1 Part No. LM850H00
Lower Sub 1 Part No. LK810001 1 Part No. LK820001 1 Part No. LK880001 1 Part No. LK880H01 1 Part No. LK840001 1 Part No. LK860001
Sub “O” Ring N/A N/A N/A N/A N/A 1 Part No. LK863000
